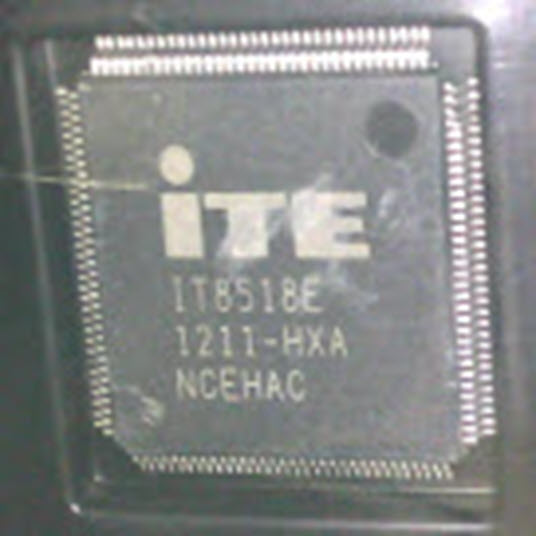

ITE IT8518E 1211-HXA

Product Description: ITE IT8518E 1211-HXA Embedded Controller (EC)

The ITE IT8518E 1211-HXA is a highly integrated Embedded Controller (EC) and Keyboard Controller (KBC) designed for notebook and portable computer applications. It plays a critical role in system management by handling communication between the system firmware, power management subsystems, and peripheral devices.

Built with advanced I/O control and power sequencing capabilities, the IT8518E ensures stable and efficient system performance. It manages key functions such as keyboard/mouse control, thermal management, battery charging communication, and system power-on/off sequences. The chip supports ACPI (Advanced Configuration and Power Interface) for intelligent power-saving operations and integrates a firmware-programmable microcontroller to allow flexible customization for various notebook designs.

Key Features:

• Embedded microcontroller core for flexible firmware development

• Full support for ACPI power management and system event handling

• Integrated keyboard and touchpad controller

• System monitoring functions including fan, temperature, and voltage control

• SMBus/I²C interfaces for communication with system components

• Supports flash ROM interface for firmware storage

• Compact 128-pin LQFP package for efficient motherboard integration

Applications:

• Notebook and Ultrabook computers

• Industrial embedded systems

• Power and thermal management modules

• Advanced I/O control in portable computing devices

Package Type: LQFP-128
Manufacturer: ITE Tech. Inc.
Model Number: IT8518E 1211-HXA

This controller is a dependable solution for engineers and repair technicians working on laptop motherboard repair or firmware restoration, offering robust functionality and compatibility across multiple notebook platforms.
