Name: ITE IT8502E 1106-KXS
SKU: 458
Availability: InStock

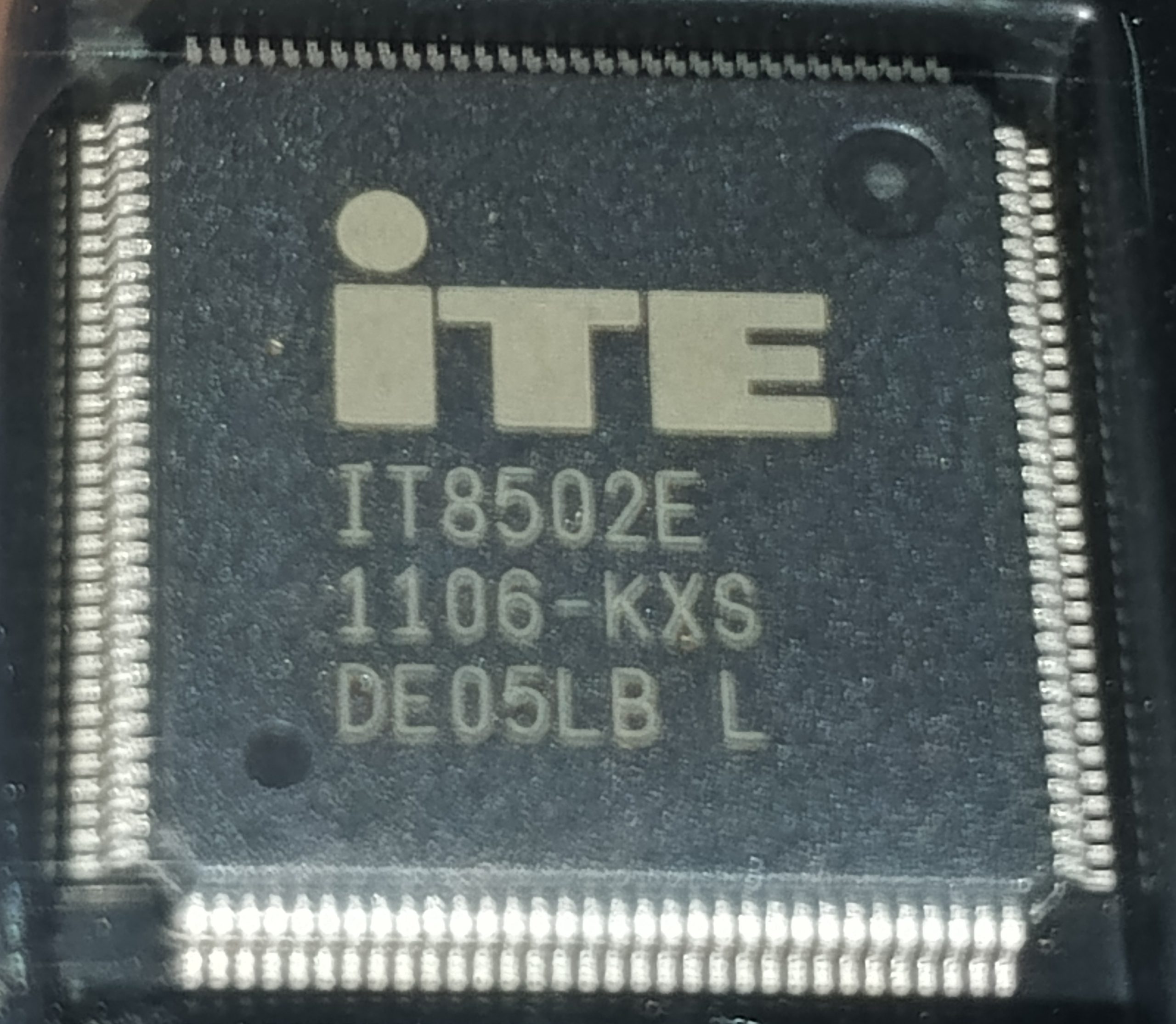

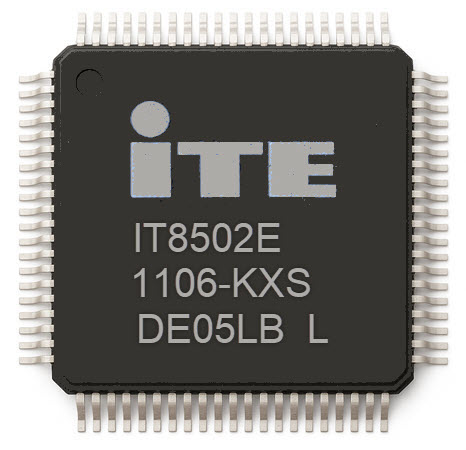

ITE IT8502E 1106-KXS

$0.07

ITE IT8502E 1106-KXS is an advanced embedded controller and keyboard controller for laptops, featuring ACPI power management, system monitoring, and customizable firmware for reliable and efficient performance.

The ITE IT8502E 1106-KXS is a versatile Embedded Controller (EC) and Keyboard Controller (KBC) developed by ITE Tech. Inc. for modern notebook and portable computer applications. It provides essential system management functions including keyboard control, touchpad interface, power sequencing, and thermal monitoring, ensuring reliable and efficient performance across a variety of laptop platforms.

Featuring a programmable microcontroller core, the IT8502E 1106-KXS supports ACPI-compliant power management, enabling advanced power-saving modes and intelligent system event handling. It also integrates communication interfaces such as LPC, SMBus, and I²C, allowing seamless connectivity with other system components like battery controllers, sensors, and EC firmware.

The IT8502E series is widely used in laptop motherboard design and repair, offering stable operation, easy firmware customization, and compatibility with a broad range of hardware configurations.

Key Features:

Embedded microcontroller with flexible firmware programming
Full ACPI power management and event support
Integrated keyboard and touchpad controller
Thermal, fan, and voltage monitoring for system protection
Supports LPC, SMBus, and I²C interfaces
Built-in Flash ROM interface for firmware storage
Compact 128-pin LQFP package for efficient integration

Applications:

Notebook and Ultrabook computers
Embedded system control boards
Power and thermal management systems
Laptop motherboard repair and diagnostics

Package Type: LQFP-128
Manufacturer: ITE Tech. Inc.
Model Number: IT8502E 1106-KXS

The ITE IT8502E 1106-KXS delivers dependable performance, efficient power control, and high compatibility, making it a trusted choice for OEM manufacturers and professional repair engineers.
