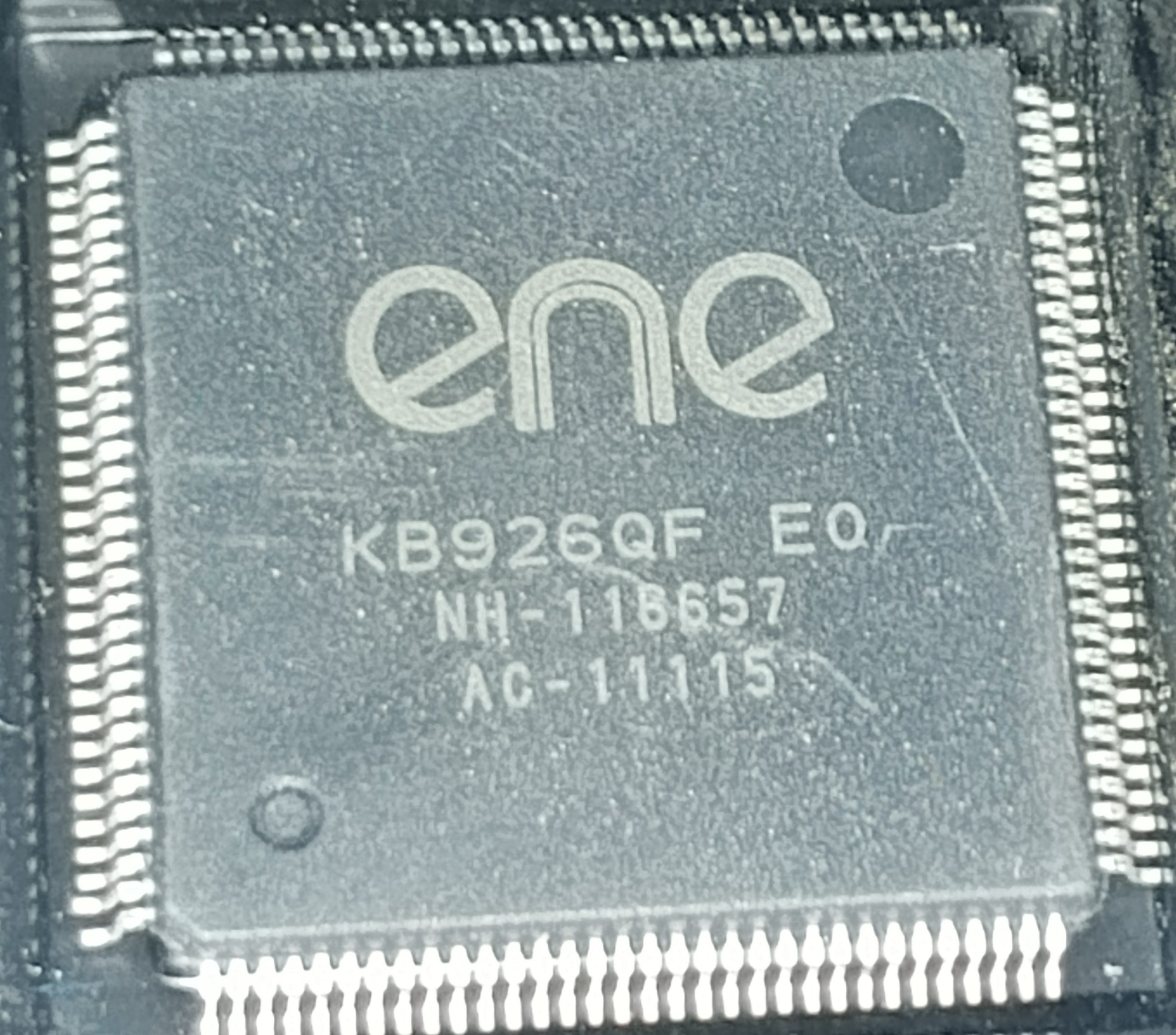

ENE KBC926QF E0

The ENE KBC926QF E0 is a highly integrated Embedded Controller (EC) and Keyboard Controller (KBC) developed by ENE Technology Inc. for notebook and portable computer systems. It serves as a key component in managing critical control functions such as keyboard and touchpad input, power sequencing, fan speed regulation, and battery communication, ensuring efficient and stable system performance.

Built with a firmware-programmable microcontroller, the KBC926QF E0 supports ACPI (Advanced Configuration and Power Interface) standards, enabling advanced power-saving capabilities and intelligent system event handling. It provides multiple communication interfaces, including LPC, SMBus, and I²C, allowing seamless interaction between the embedded controller, BIOS, and other onboard hardware.

Known for its stability, compatibility, and low power consumption, the ENE KBC926QF E0 is widely used in laptop motherboard design, repair, and replacement, making it a preferred choice for engineers and manufacturers in the portable computing industry.

Key Features:

• Embedded microcontroller with flexible firmware programmability

• Full ACPI-compliant power management and event handling

• Integrated keyboard and touchpad controller

• Thermal, voltage, and fan monitoring for system protection

• Supports LPC, SMBus, and I²C communication interfaces

• Flash ROM interface for firmware updates

• Compact 128-pin LQFP package for efficient integration

Applications:

• Notebook and Ultrabook motherboards

• Embedded control systems

• Power and thermal management modules

• Laptop motherboard repair and diagnostics

Package Type: LQFP-128
Manufacturer: ENE Technology Inc.
Model Number: KBC926QF E0

The ENE KBC926QF E0 delivers high reliability, efficient system control, and robust firmware flexibility—making it an ideal solution for modern laptops and embedded controller applications.
